NY Times COVID-19 data visualization (Update)

Introduction

This post is both an update and a full-blown version of an older post — “NY Times COVID-19 data visualization” — using NY Times COVID-19 data up to 2021-01-13.

The purpose of this document/notebook is to give data locations, data ingestion code, and code for rudimentary analysis and visualization of COVID-19 data provided by New York Times, [NYT1].

The following steps are taken:

  • Ingest data
    • Take COVID-19 data from The New York Times, based on reports from state and local health agencies, [NYT1].
    • Take USA counties records data (FIPS codes, geo-coordinates, populations), [WRI1].
  • Merge the data.
  • Make data summaries and related plots.
  • Make corresponding geo-plots.
  • Do “out of the box” time series forecast.
  • Analyze fluctuations around time series trends.

Note that other, older repositories with COVID-19 data exist, like, [JH1, VK1].

Remark: The time series section is done for illustration purposes only. The forecasts there should not be taken seriously.

Import data

NYTimes USA states data

dsNYDataStates = ResourceFunction["ImportCSVToDataset"]["https://raw.githubusercontent.com/nytimes/covid-19-data/master/us-states.csv"];
dsNYDataStates = dsNYDataStates[All, AssociationThread[Capitalize /@ Keys[#], Values[#]] &];
dsNYDataStates[[1 ;; 6]]
18qzu6j67rb6y
ResourceFunction["RecordsSummary"][dsNYDataStates]
0eh58fau8y8r1

NYTimes USA counties data

dsNYDataCounties = ResourceFunction["ImportCSVToDataset"]["https://raw.githubusercontent.com/nytimes/covid-19-data/master/us-counties.csv"];
dsNYDataCounties = dsNYDataCounties[All, AssociationThread[Capitalize /@ Keys[#], Values[#]] &];
dsNYDataCounties[[1 ;; 6]]
1cpd9bx9xi71h
ResourceFunction["RecordsSummary"][dsNYDataCounties]
1elzwfv0fe32k

US county records

dsUSACountyData = ResourceFunction["ImportCSVToDataset"]["https://raw.githubusercontent.com/antononcube/SystemModeling/master/Data/dfUSACountyRecords.csv"];
dsUSACountyData = dsUSACountyData[All, Join[#, <|"FIPS" -> ToExpression[#FIPS]|>] &];
dsUSACountyData[[1 ;; 6]]
0ycsuwd577vov

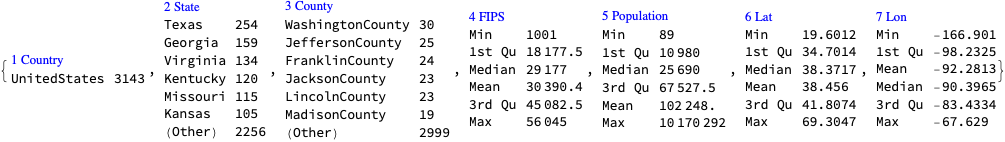

ResourceFunction["RecordsSummary"][dsUSACountyData]
0tqfkpq6gxui9

Merge data

Verify that the two datasets have common FIPS codes:

Length[Intersection[Normal[dsUSACountyData[All, "FIPS"]], Normal[dsNYDataCounties[All, "Fips"]]]]

(*3133*)

Merge the datasets:

dsNYDataCountiesExtended = Dataset[JoinAcross[Normal[dsNYDataCounties], Normal[dsUSACountyData[All, {"FIPS", "Lat", "Lon", "Population"}]], Key["Fips"] -> Key["FIPS"]]];

Add a “DateObject” column and (reverse) sort by date:

dsNYDataCountiesExtended = dsNYDataCountiesExtended[All, Join[<|"DateObject" -> DateObject[#Date]|>, #] &];
dsNYDataCountiesExtended = dsNYDataCountiesExtended[ReverseSortBy[#DateObject &]];
dsNYDataCountiesExtended[[1 ;; 6]]
09o5nw7dv2wba

Basic data analysis

We consider cases and deaths for the last date only. (The queries can be easily adjusted for other dates.)

dfQuery = dsNYDataCountiesExtended[Select[#Date == dsNYDataCountiesExtended[1, "Date"] &], {"FIPS", "Cases", "Deaths"}];
dfQuery = dfQuery[All, Prepend[#, "FIPS" -> ToString[#FIPS]] &];
Total[dfQuery[All, {"Cases", "Deaths"}]]

(*<|"Cases" -> 22387340, "Deaths" -> 355736|>*)

Here is the summary of the values of cases and deaths across the different USA counties:

ResourceFunction["RecordsSummary"][dfQuery]
1kdnmrlhe4srx

The following table of plots shows the distributions of cases and deaths and the corresponding Pareto principle adherence plots:

opts = {PlotRange -> All, ImageSize -> Medium};
Rasterize[Grid[
   Function[{columnName},
     {Histogram[Log10[#], PlotLabel -> Row[{Log10, Spacer[3], columnName}], opts], ResourceFunction["ParetoPrinciplePlot"][#, PlotLabel -> columnName, opts]} &@Normal[dfQuery[All, columnName]]
    ] /@ {"Cases", "Deaths"},
   Dividers -> All, FrameStyle -> GrayLevel[0.7]]]
13l8k7qfbkr3q

A couple of observations:

  • The logarithms of the cases and deaths have nearly Normal or Logistic distributions.
  • Typical manifestation of the Pareto principle: 80% of the cases and deaths are registered in 20% of the counties.

Remark: The top 20% counties of the cases are not necessarily the same as the top 20% counties of the deaths.

Distributions

Here we find the distributions that correspond to the cases and deaths (using FindDistribution ):

ResourceFunction["GridTableForm"][List @@@ Map[Function[{columnName},
     columnName -> FindDistribution[N@Log10[Select[#, # > 0 &]]] &@Normal[dfQuery[All, columnName]]
    ], {"Cases", "Deaths"}], TableHeadings -> {"Data", "Distribution"}]
10hkfowjmj6oh

Pareto principle locations

The following query finds the intersection between that for the top 600 Pareto principle locations for the cases and deaths:

Length[Intersection @@ Map[Function[{columnName}, Keys[TakeLargest[Normal@dfQuery[Association, #FIPS -> #[columnName] &], 600]]], {"Cases", "Deaths"}]]

(*516*)

Geo-histogram

lsAllDates = Union[Normal[dsNYDataCountiesExtended[All, "Date"]]];
lsAllDates // Length

(*359*)
Manipulate[
  DynamicModule[{ds = dsNYDataCountiesExtended[Select[#Date == datePick &]]},
   GeoHistogram[
    Normal[ds[All, {"Lat", "Lon"}][All, Values]] -> N[Normal[ds[All, columnName]]],
    Quantity[150, "Miles"], PlotLabel -> columnName, PlotLegends -> Automatic, ImageSize -> Large, GeoProjection -> "Equirectangular"]
  ],
  {{columnName, "Cases", "Data type:"}, {"Cases", "Deaths"}},
  {{datePick, Last[lsAllDates], "Date:"}, lsAllDates}]
1egny238t830i

Heat-map plots

An alternative of the geo-visualization is to use a heat-map plot. Here we use the package “HeatmapPlot.m”, [AAp1].

Import["https://raw.githubusercontent.com/antononcube/MathematicaForPrediction/master/Misc/HeatmapPlot.m"]

Cases

Cross-tabulate states with dates over cases:

matSDC = ResourceFunction["CrossTabulate"][dsNYDataStates[All, {"State", "Date", "Cases"}], "Sparse" -> True];

Make a heat-map plot by sorting the columns of the cross-tabulation matrix (that correspond to states):

HeatmapPlot[matSDC, DistanceFunction -> {EuclideanDistance, None}, AspectRatio -> 1/2, ImageSize -> 1000]
1lmgbj4mq4wx9

Deaths

Cross-tabulate states with dates over deaths and plot:

matSDD = ResourceFunction["CrossTabulate"][dsNYDataStates[All, {"State", "Date", "Deaths"}], "Sparse" -> True];
HeatmapPlot[matSDD, DistanceFunction -> {EuclideanDistance, None}, AspectRatio -> 1/2, ImageSize -> 1000]
0g2oziu9g4a8d

Time series analysis

Cases

Time series

For each date sum all cases over the states, make a time series, and plot it:

tsCases = TimeSeries@(List @@@ Normal[GroupBy[Normal[dsNYDataCountiesExtended], #DateObject &, Total[#Cases & /@ #] &]]);
opts = {PlotTheme -> "Detailed", PlotRange -> All, AspectRatio -> 1/4,ImageSize -> Large};
DateListPlot[tsCases, PlotLabel -> "Cases", opts]
1i9aypjaqxdm0

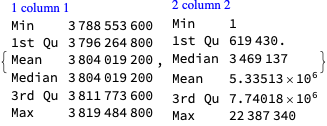

ResourceFunction["RecordsSummary"][tsCases["Path"]]
1t61q3iuq40zn

Logarithmic plot:

DateListPlot[Log10[tsCases], PlotLabel -> Row[{Log10, Spacer[3], "Cases"}], opts]
0r01nxd19xj1x

“Forecast”

Fit a time series model to log 10 of the time series:

tsm = TimeSeriesModelFit[Log10[tsCases]]
1gz0j2673707m

Plot log 10 data and forecast:

DateListPlot[{tsm["TemporalData"], TimeSeriesForecast[tsm, {10}]}, opts, PlotLegends -> {"Data", "Forecast"}]
10vx2ydgcpq0c

Plot data and forecast:

DateListPlot[{tsCases, 10^TimeSeriesForecast[tsm, {10}]}, opts, PlotLegends -> {"Data", "Forecast"}]
04qu24g27fzi6

Deaths

Time series

For each date sum all cases over the states, make a time series, and plot it:

tsDeaths = TimeSeries@(List @@@ Normal[GroupBy[Normal[dsNYDataCountiesExtended], #DateObject &, Total[#Deaths & /@ #] &]]);
opts = {PlotTheme -> "Detailed", PlotRange -> All, AspectRatio -> 1/4,ImageSize -> Large};
DateListPlot[tsDeaths, PlotLabel -> "Deaths", opts]
1uc6wpre2zxl3
ResourceFunction["RecordsSummary"][tsDeaths["Path"]]
1olawss0k1gvd

“Forecast”

Fit a time series model:

tsm = TimeSeriesModelFit[tsDeaths, "ARMA"]
0e5p4c2hxhahd

Plot data and forecast:

DateListPlot[{tsm["TemporalData"], TimeSeriesForecast[tsm, {10}]}, opts, PlotLegends -> {"Data", "Forecast"}]
06uurgguaxyg9

Fluctuations

We want to see does the time series data have fluctuations around its trends and estimate the distributions of those fluctuations. (Knowing those distributions some further studies can be done.)

This can be efficiently using the software monad QRMon, [AAp2, AA1]. Here we load the QRMon package:

Import["https://raw.githubusercontent.com/antononcube/MathematicaForPrediction/master/MonadicProgramming/MonadicQuantileRegression.m"]

Fluctuations presence

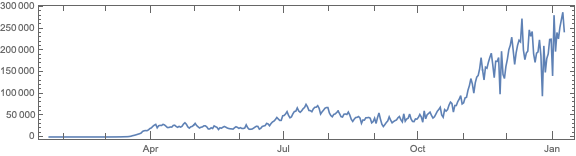

Here we plot the consecutive differences of the cases:

DateListPlot[Differences[tsCases], ImageSize -> Large, AspectRatio -> 1/4, PlotRange -> All]
1typufai7chn8

Here we plot the consecutive differences of the deaths:

DateListPlot[Differences[tsDeaths], ImageSize -> Large, AspectRatio -> 1/4, PlotRange -> All]
0wqagqqfj3p7l

From the plots we see that time series are not monotonically increasing, and there are non-trivial fluctuations in the data.

Absolute and relative errors distributions

Here we take interesting part of the cases data:

tsData = TimeSeriesWindow[tsCases, {{2020, 5, 1}, {2020, 12, 31}}];

Here we specify QRMon workflow that rescales the data, fits a B-spline curve to get the trend, and finds the absolute and relative errors (residuals, fluctuations) around that trend:

qrObj =
   QRMonUnit[tsData]⟹
    QRMonEchoDataSummary⟹
    QRMonRescale[Axes -> {False, True}]⟹
    QRMonEchoDataSummary⟹
    QRMonQuantileRegression[16, 0.5]⟹
    QRMonSetRegressionFunctionsPlotOptions[{PlotStyle -> Red}]⟹
    QRMonDateListPlot[AspectRatio -> 1/4, ImageSize -> Large]⟹

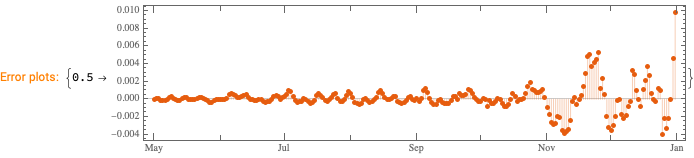

    QRMonErrorPlots["RelativeErrors" -> False, AspectRatio -> 1/4, ImageSize -> Large, DateListPlot -> True]⟹
    QRMonErrorPlots["RelativeErrors" -> True, AspectRatio -> 1/4, ImageSize -> Large, DateListPlot -> True];
0mcebeqra4iqj
0lz7fflyitth2
0ke1wkttei4a3
0smqxx82ytyjq
1ct1s3qemddsi

Here we find the distribution of the absolute errors (fluctuations) using FindDistribution:

lsNoise = (qrObj⟹QRMonErrors["RelativeErrors" -> False]⟹QRMonTakeValue)[0.5];
FindDistribution[lsNoise[[All, 2]]]

(*CauchyDistribution[6.0799*10^-6, 0.000331709]*)

Absolute errors distributions for the last 90 days:

lsNoise = (qrObj⟹QRMonErrors["RelativeErrors" -> False]⟹QRMonTakeValue)[0.5];
FindDistribution[lsNoise[[-90 ;; -1, 2]]]

(*ExtremeValueDistribution[-0.000996315, 0.00207593]*)

Here we find the distribution of the of the relative errors:

lsNoise = (qrObj⟹QRMonErrors["RelativeErrors" -> True]⟹QRMonTakeValue)[0.5];
FindDistribution[lsNoise[[All, 2]]]

(*StudentTDistribution[0.0000511326, 0.00244023, 1.59364]*)

Relative errors distributions for the last 90 days:

lsNoise = (qrObj⟹QRMonErrors["RelativeErrors" -> True]⟹QRMonTakeValue)[0.5];
FindDistribution[lsNoise[[-90 ;; -1, 2]]]

(*NormalDistribution[9.66949*10^-6, 0.00394395]*)

References

[NYT1] The New York Times, Coronavirus (Covid-19) Data in the United States, (2020), GitHub.

[WRI1] Wolfram Research Inc., USA county records, (2020), System Modeling at GitHub.

[JH1] CSSE at Johns Hopkins University, COVID-19, (2020), GitHub.

[VK1] Vitaliy Kaurov, Resources For Novel Coronavirus COVID-19, (2020), community.wolfram.com.

[AA1] Anton Antonov, “A monad for Quantile Regression workflows”, (2018), at MathematicaForPrediction WordPress.

[AAp1] Anton Antonov, Heatmap plot Mathematica package, (2018), MathematicaForPrediciton at GitHub.

[AAp2] Anton Antonov, Monadic Quantile Regression Mathematica package, (2018), MathematicaForPrediciton at GitHub.
